High-Frequency Vacuum Lifter for Fast Paced Environments

Designed for rapid, precise material handling, the TAWI High-Frequency Vacuum Lifter is ideal for logistics hubs, warehouses, and packaging operations. This ergonomic, one-handed system quickly lifts boxes, baggage, drums, and food-grade goods — making it perfect for fast-paced environments where efficiency matters.
[object Object] - 1
[object Object] - 2
[object Object] - 3
[object Object] - 4
[object Object] - 5
[object Object] - 6
[object Object] - 7

High-Speed Lifting Solutions

High-speed lifting has never been easier. Grip and lift boxes and other goods, quick and easy with TAWI’s high speed lifter.

  • Lifting Capacity: <145 lbs
  • Lifting Speed: 0-3 ft/s
  • Stroke: 68 - 72 in
  • Lift, boxes, drums, baggage, food products and more
  • Rotate boxes 360°



Options Available: Stainless Steel, and Customization

Get Personalized Assistance

What We Can Lift

Baggage
Barrels & Kegs
Boxes
Components
Drums & Containers
Unpacked Food

Examples of Application Tools

A suction foot with a wide, rounded rectangular base, a soft rubber sealing lip and a vertical lifting handle.

One-handed vacuum sack lifter

Suction foot name: Sack suction foot. Typical loads: Sacks and bags.

A Flexigrip suction foot with a rectangular black plate and rows of small green bellows suction cups with red sealing lips

Flexigrip

Suction foot name: Flexigrip. Typical loads: Boxes and cartons of varying sizes, including uneven surfaces and two boxes lifted together.

A fixed lifting yoke fitted with six small bellows suction cups in a preset layout for a common carton size.

Carton suction foot for fixed formats

Suction foot name: Fixed six-cup yoke with bellows cups. Typical loads: Cartons of a consistent size, including those with slight surface height or angle variations.

A fixed lifting yoke with four bellows suction cups spaced widely apart for handling larger loads. The cups are larger than those on the six-cup version and mounted in non-adjustable positions.

Wide-span carton suction foot

Suction foot name: Fixed four-cup yoke with bellows cups. Typical loads: Larger cartons of a consistent size, requiring wider spacing between grip points.

A two-cup lifting yoke with suction cups adjustable along the frame to suit different load sizes. Spring-loaded mechanical links allow the cups to tilt with the load surface and return towards a horizontal position when released.

Adjustable suction cup for carton and sheet handling

Suction foot name: Two-cup yoke with spring-loaded link. Typical loads: Cartons, and flat surfaces such as glass, sheet metal and wood.

A single large black bellows suction cup attached to an angled lifting handle. The flexible bellows allow the cup to adapt to variations in surface height and angle.

Single bellows suction foot for load handling

Suction foot name: Single bellows suction foot. Typical loads: A general purpose solution that handles most loads.

Trusted by industry leaders

LOGOSYS | BGS TECHNIK | YUSEN LOGISTICS | AMPLIQON | PRYSMIAN

DB Schenker

“We chose TAWI vacuum lifters due to the high quality of the product and the ease of integrating the lifters into our daily work. We also got a good impression of TAWI as a company and their ability to provide quick maintenance and service.”

Tim Maalsnes, Operational Excellence Engineer — DB Schenker

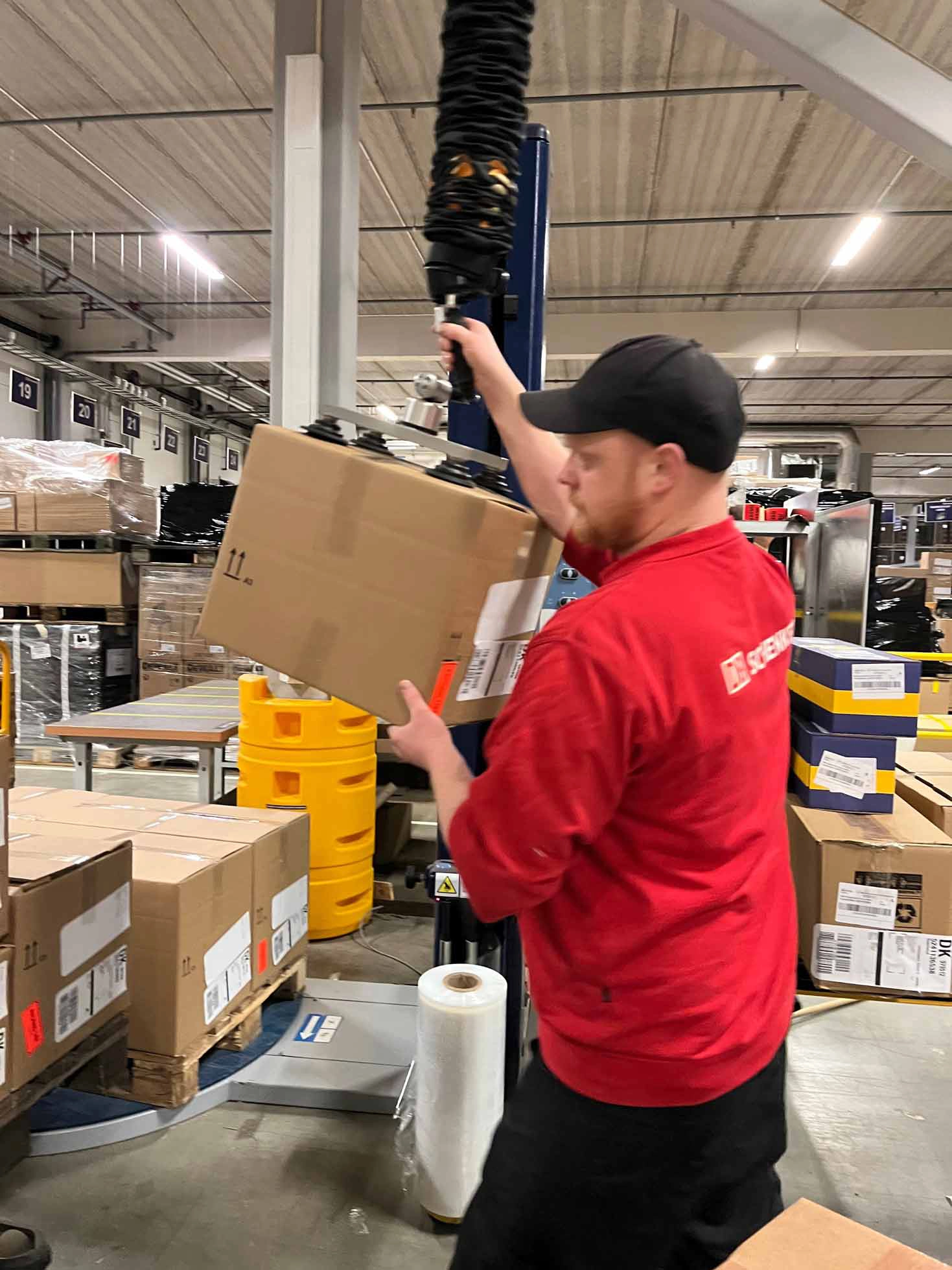

DB Schenker using TAWI High Frequency Lifters in their warehouse.
Verified Case Study

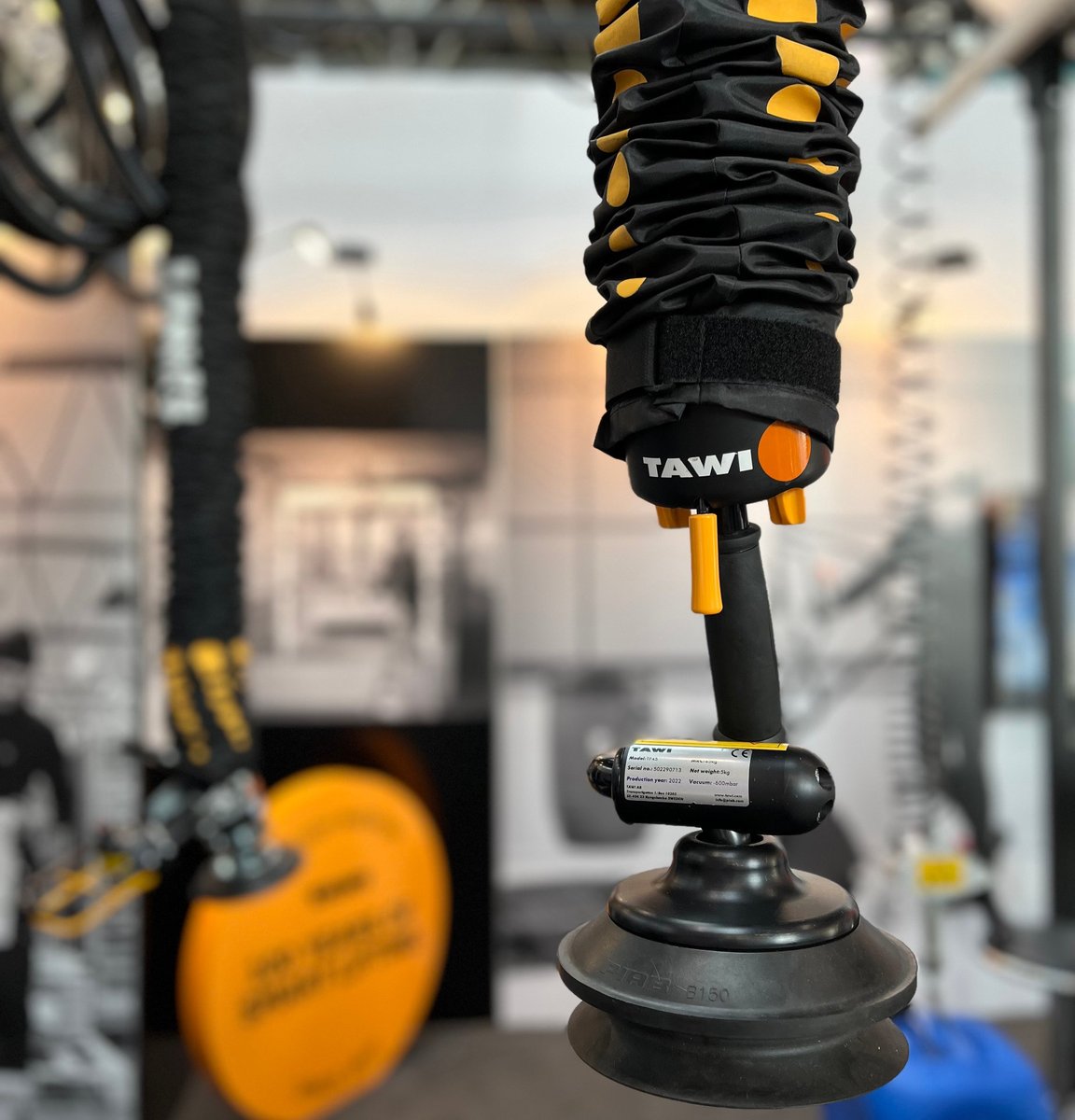

TAWI Multifunctional Lifter



High frequency manual handling

With TAWI High frequency lifter you can grip and lift quick and easy with just one hand. The suction foot can hold most types of packaged goods.

  • High-speed box handling
  • Grip from the top or from the side
  • One-handed lifting with user-friendly joystick handle
  • Customized suction feet to suit your boxes
  • Rotate boxes 360°





High-frequency lifting at full speed

Need to speed up manual handling of goods? This high-speed lifter makes lifting comfortable, safe and very time-efficient.

Quick and easy
This high-speed vacuum lifter picks up boxes of all shapes and sizes, securely gripping them from the top or from the side. Whenever you need to load or unload packaged goods, TAWI High frequency lifter will make the job effortless, efficient and ergonomic. The comfortable handle lets you pick up loads using only one hand, easily controlling lifting height with your fingertips. The control is quickly adjusted from the right to left side of the handle to suit left- or right-handed users.

Time-efficient handling
Loading or unloading pallets has never been easier. Pick up goods from the top or from the side, turn the load if needed and quickly release it in the exact position where you need it. A swivel integrated in both the top and bottom of the tube lifter allows you to rotate the goods and not the lifter, ensuring high precision. The quick-release function makes sure no time is wasted when releasing the load. TAWI High frequency lifter facilitates high-frequency lifting, streamlining the manual handling of goods in any logistic department, distribution centre or warehouse.

Custom made for your load
The suction feet used to grip the load comes in various shapes and sizes and can also be custom made to fit your load. Carton boxes are the most common load lifted by the TAWI High frequency lifter, but food industry clients also use it to lift various loads such as blocks of cheese or meat, milk cartons or wine boxes. The High frequency lifter is also commonly used for baggage handling in airports.
